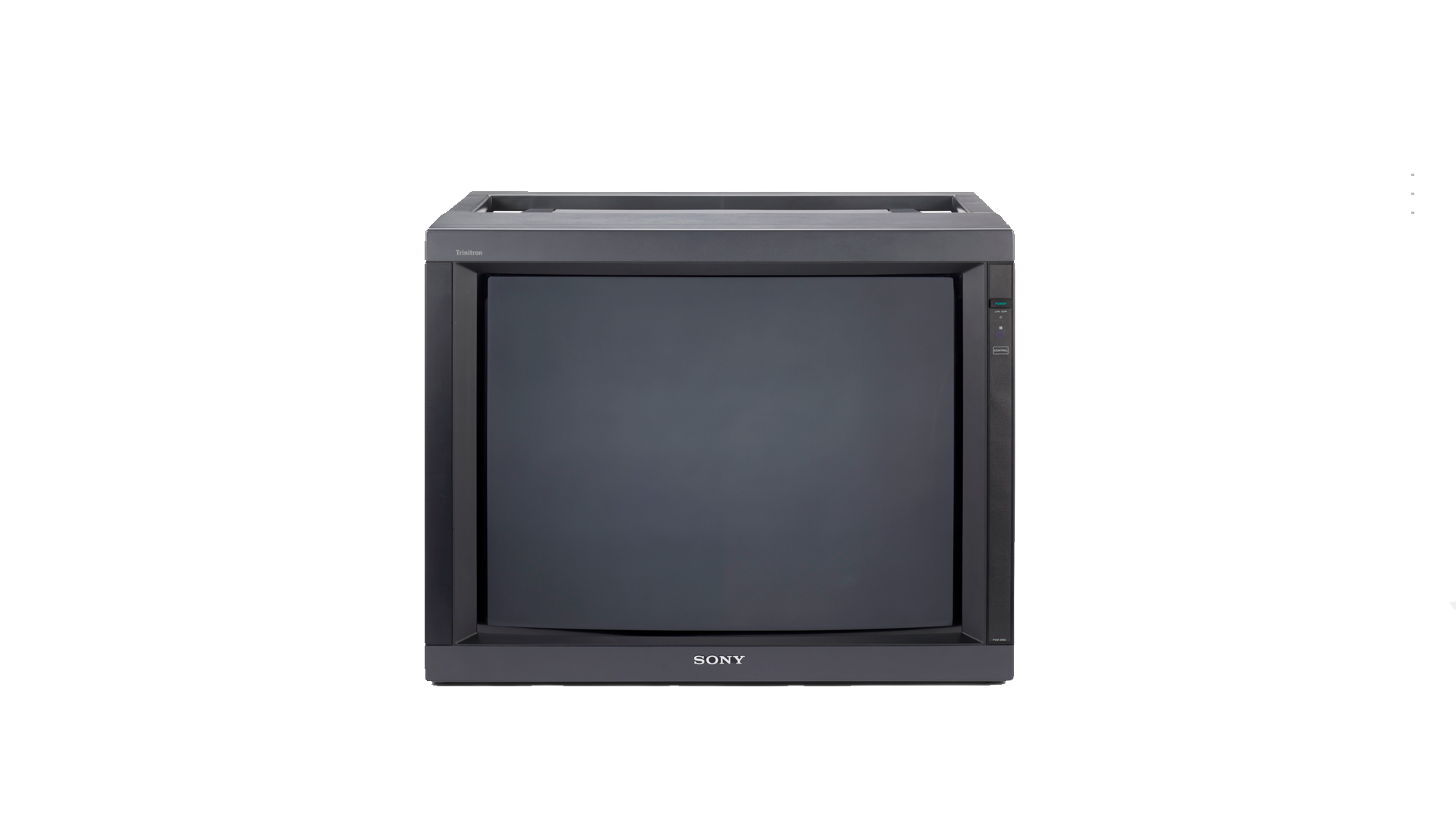

Sony PVM-2950QM CRT Monitor Colour System PAL, SECAM, NTSC, NTSC 4.43
CRT type 729 mm (29’’) Super Trinitron tube,
visible picture size 675 mm (27’’) measured diagonally,
110° deflection, AG pitch 0.7 to 0.85 mm
Resolution 600 TV lines at center
Color temperature 3200K, 6500K, 9300K (factory preset 6500K)
Audio power output 8 to 16 O, 7 W + 7 W
Power requirements 220 to 240 V, 50/60 Hz
Power consumption Approx. 165 W (typical), 180 W (max.)
Operating temperature 0 to 35° C (32 to 95° F)
Dimensions (w?×?h?×?d) 68.7?×?53.8?×?52.9 cm
Plinth dimensions (w?×?d) 68.7?×?51 cm
Weight Approx. 52 kg (114 lb 10 oz)
Video inputs Line 1/2
Composite: Loop-through BNC
1Vp-p, sync negative,
Automatic 75 O termination
Y/C: Loop-through Mini DIN 4-pin
Y (luminance): 1Vp-p sync negative
C (chrominance): 0.286Vp-p (NTSC), 0.3Vp-p (PAL)
Automatic 75 O termination
Audio Inputs Line 1/2: Loop-through phono
-5dBu, high impedance
